Meshtastic is one of those projects that feels like real-world hacking and actually useful at the same time.
Here’s a practical, no-BS starter kit list for getting a working mesh going. This setup gives you 2–3 portable nodes + one more fixed/solar-capable node so you can actually see messages hopping and test real range.
Recommended 3–4 Node Starter Kit (2026)
| Item | Model / Type | Qty | Why It’s Good | Approx. Price Each | Notes |
|---|---|---|---|---|---|
| Portable Node (Best all-rounder) | Lilygo T-Beam Supreme (or T3S3 V1.2 / current equivalent with GPS) | 2 | Built-in GPS, screen, good battery life, very popular & well supported | $35–55 | Great for vehicle, backpack, or handheld use |
| Fixed / Solar Infrastructure Node | Heltec WiFi LoRa 32 V3 (with case) or RAK WisBlock 4631 | 1 | Easy to put in a weatherproof box + solar. Heltec has nice OLED screen | $25–40 | Mount on roof, pole, or tree for better coverage |
| Antenna Upgrade | 5–8 dBi 915 MHz external antenna (SMA or u.FL + pigtail) | 3 | Stock antennas are mediocre. These noticeably improve range | $8–15 | Huge difference in real-world performance |
| Power | 18650 battery holder + protected 18650 cells (or LiPo) + small 5–10W solar panel | 2–3 sets | Keeps nodes alive for days/weeks. Solar makes them set-and-forget | $10–20 per node | Essential for grid-down use |
| Enclosure (for fixed node) | Small IP65/IP67 waterproof box + cable glands | 1 | Protects the solar node from weather | $10–20 | Optional but highly recommended |
| Cables & Misc | USB-C cables, SMA pigtails, velcro or mounting hardware | — | You’ll need these anyway | $10–15 total | — |
Total estimated cost: $180–280 for a solid 3–4 node starter mesh (depending on exact models and whether you already have batteries/solar panels).
Why This Specific Combo?
- Lilygo T-Beam/T3S3 — Most popular right now. Reliable, good community support, built-in GPS for location sharing.
- Heltec or RAK — Easy to turn into a permanent solar node.
- External antennas + elevation = dramatically better range than stock whips.
- Solar + battery = true “immune to grid outages” setup.
Software & Getting It Running (Super Easy)
- Go to meshtastic.org → use the Web Flasher (no coding needed).
- Plug each node into your computer via USB-C and flash the latest firmware.
- Download the official Meshtastic app (iOS or Android).
- Create a private encrypted channel (so only your group can see messages).

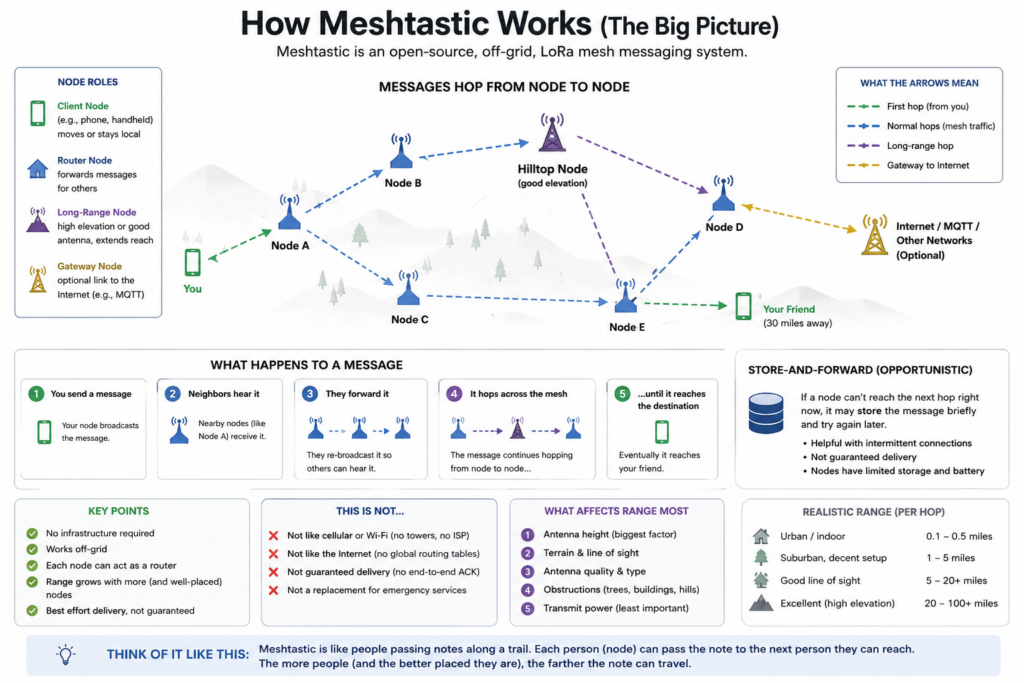

- Turn everything on and watch messages hop between nodes.
You can be chatting off-grid in under an hour once the hardware arrives.
